xDENOMINATION:
Wall flatwork ironer with roller diameter 32,5 cm and length 200 gas
heating
DESCRIPTION :
MAINTENANCE CARE
Simple, reliable and accesible mechanism in which the components
have been designed and manufactured with the highest quality and
prestige.
INVERTER
Frequency inverter in all models.
HIGH-TECH ROLL
High-performance steel roller.
M ELECTRONIC CONTROL
Intuitive and easy to use.
2 selectable operating modes:
· Manual Mode: selection of speed and temperature.
· Auto Mode: automatic adjustment of the ironing speed according to
the temperature selected.
– Front insertion and reception of linen.
– Variable-frequency drive to control ironing speed.
– Safety protector for hands.
– Automatic stop on cooling (80 ºc).
– Unit exterior constructed in sandwich panel and stainless steel.
– Powerful exhaust extraction system.
– Insertion and ironing belts in Nomex for easy operation, high quality
ironing and great durability.
– 7 ironing speeds, adjustable by variablefrequency drive, for selection
between 1.5 and 10 m/ minute, PLUS models up to 12 mts/min.
– Reverse roll standard.
– Table height of 990 mm.

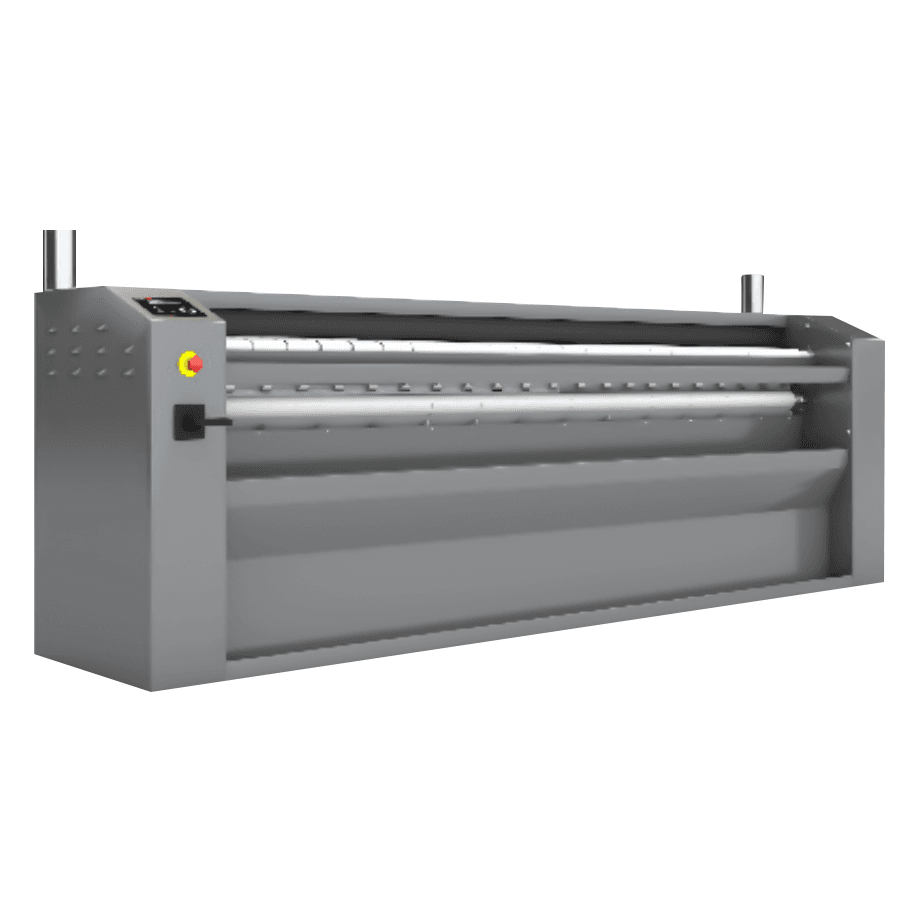

LAUNDRY IRONING AND FOLDING – PS-35/200 M PLUS GR CE LPG 230/400V 3/3N
DIMENSIONS
X Width 2552 mm X Gross width 2740 mm
Y Depth 685 mm Y Gross depth 770 mm
Z Height 1112 mm Z Gross height 1400 mm
Net Weight 438,0 kg Gross Weight 438,0 kg
Net Volume 1,95 M3 Gross Volume 2,95 M3
GAS TECHNICAL SPECIFICATIONS
Cau.G30/A.Cal.24 3,130 KGH
Cau.G20/A.Mot.22 4,240 MQH
Regulated -85999,14 kCal/h
ELECTRICITY TECHNICAL SPECIFICATIONS
Engine power 0,520 KW
Electric power 0,520 KW
Amperage (A) 6A
Voltage 400V – 3N
Electric frequency 50/60Hz
CONNECTIONS TECHNICAL SPECIFICATIONS
230 V three-phase wiring NO
OTHERS
Roller length in cm 200,000 CM
Roller diameter 325,000 MM
Production 45% moisture 45,000 KGH
Operational speed 1,500-12,000 2X
Noise level
